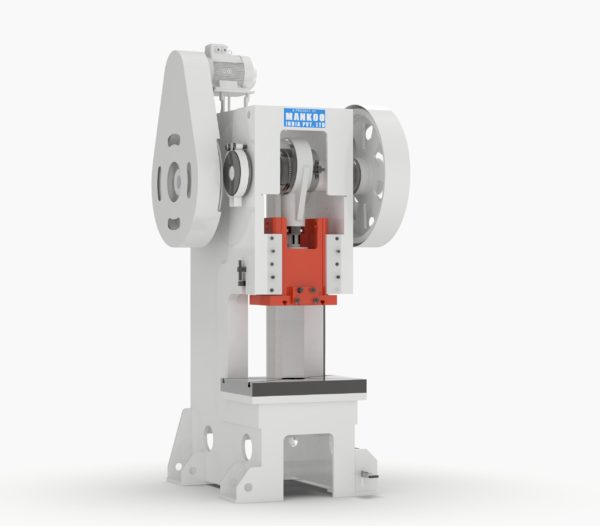

The C-Frame Press line features a slim and clean design, allowing the operator excellent accessibility to the work area from the front as well as the sides. Ideal for rubber molding, straightening, bending, pressing, stamping, and die cushion work, C-Frame Presses offer an outstanding price-performance ratio.

Range : 10 Tons to 250 Tons

C-frame mechanical power presses are typically used for stamping, blanking, forming, and other metalworking operations. They are available in a variety of sizes and capacities, from small presses that can exert a few tons of force to large presses that can exert hundreds of tons of force.

C-frame mechanical power presses are known for their simplicity and affordability. They are also relatively easy to maintain and operate.

Download Brochure With Pneumatic Clutch
Download Brochure With Rolling Key Clutch
Category:

Description

Technical Specification

SPECIFICATIONS 10 Tons 20 Tons 30 Tons 50 Tons 80 Tons 100 Tons 150 Tons 200 T 250 T
Bed Size LR x FB mm 482 x 318 542 x 360 644 x 406 750 x 508 813 x 546 940 x 623 1016 x 665 1100 x 700 1200 x 800
No. of Strokes per Min S.P.M. 55 50 45 40 40 40 35 30 28
Stroke Length Adjustable mm 8 – 51 8 – 63 8 – 76 8 – 90 8 – 102 8 – 114 10 – 130 20 – 150 20 – 175
Daylight from Bottom Bed mm 243 276 330 358 373 535 590 615 640
Shut Height from Bottom Bed mm 192 213 254 268 271 421 460 465 465
Slide Adjustment mm 25 28 30 35 35 40 45 50 50
Throat Depth mm 159 180 203 254 273 312 332 350 400
Bolster Thickness mm 67 67 72 85 85 85 95 100 120
Bed Opening mm 100 100 125 150 150 175 175 200 200
Gear Dia mm 533 610 678 796 873 914 1015 1125 1225
Fly Wheel Dia mm 457 660 600 686 762 914 1065 1200 1250
Shank Hole Dia mm 32 40 40 46 50 53 57 57 65
Floor to Top of Bed mm 735 726 773 820 836 850 850 850 850
Motor Power Required H.P. / RPM 1.5 / 1440 2 / 1440 3 / 1440 5 / 1440 7.5 / 1440 10 / 1440 15 / 1440 20 / 1440 25 / 1440
Required Air Pressure Kg / cm2 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5
Capacity Tons 1 1.5 3 5 8 10 15 20 25
Stroke Length mm 25 25 45 55 65 70 80 100 110
Air Pressure Kg / cm2 7 7 7 7 7 7 7 7 7
