Double Crank Cross Shaft Power Press

Double Crank Cross Shaft Power Press

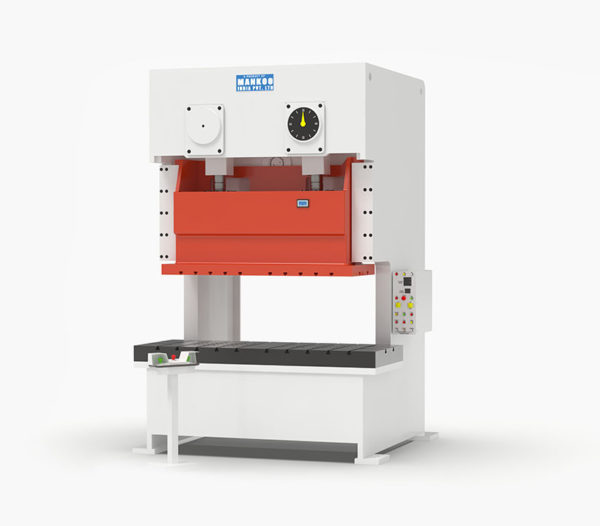

Double Crank Cross Shaft C Frame Power Presses are applicable for single and progressive die application in blanking, piercing, bending, forming. You can interlink them with transfer unit. These presses are having Rigid frame with less deflection & Wide bolster and side area. These presses are most suitable for automobile components & white good industry.

Download Brochure

Category:

Description

Technical Specification

SPECIFICATION MINX-2–110 MINX-2–160 MINX-2–200 MINX-2–250 MINX-2–300
Capacity Ton 110 160 200 250 300
Length of Stroke mm 180 200 230 250 280
Stroke Per Minute S.P.M 50 40 35 30 30
Tonnage Rating Point at B. D. C mm 5 6 7 7 8
Die Height mm 400 450 500 550 550
Adjustment of Slide mm 90 100 110 120 120
Area of Slide mm 1430×520 1560×580 1850×650 2100×700 2100×800
Diameter oi Shank Hole mm 51 51 51 51 51
Area of Bolster mm 1880×680 2040×760 2420×840 2700×920 2700×900
Thickness of Bolster mm 150 160 170 180 200
Throat Depth mm 900 950 1000 1100 1100
Main Motor Hp x p 10HP x 4P 15Hp x 4P 20Hp x 4P 25Hp x 4P 30Hp x 4P
Foot Size mm 1980 × 1760 2170 × 2030 2520 × 2165 2810 × 2470 2870 × 2535
Floor Space Required mm 2090 × 1760 2275 × 2030 2650 × 2165 2915 × 2470 2945 x2535
Overall Height mm 3098 3378 3370 4138 4368
Capacity (at 5kg /cm2) tf 6 × 2 8 × 2 10 × 2 14 × 2 14 × 2
Lenght of Stroke mm 70 90 100 120 120
Area of Pads (R.L X F.B) mm 480 × 340 x 2 560 × 370 × 2 700 × 450 × 2 700 × 450 × 2 700 × 450 × 2
