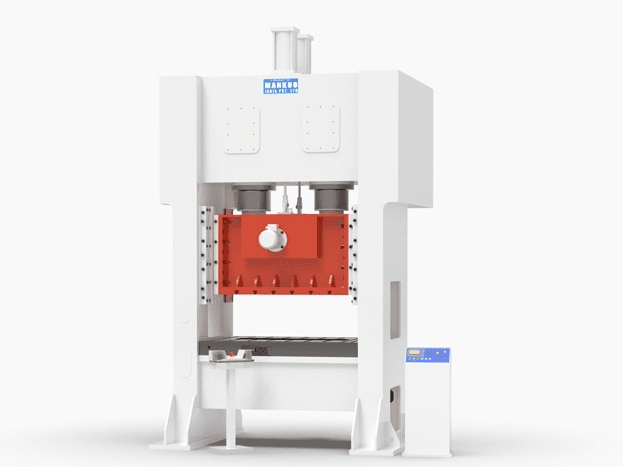

TWO POINT H FRAME UNGEARED HIGH SPEED PRESSES are heavy duty presses used for bigger dies. It is suitable for MOTOR LAMINATION and progressive dies. They are equipped with Motorized Ram adjustment. The Main frame of the press is of all welded to up right straight line type constructed of thick rolled plates.

Download Brochure

Description

Technical Specification

MODEL MIHS-40 MIHS-63 MIHS-100 MIHS-160 MIHS-200 MIHS-315
Capacity Tonne 40 63 100 160 200 315
Stroke Length mm 25 25 30 30 30 40
Strokes Per Min. spm 100 – 200 100 – 200 100 – 200 90 – 180 90 – 180 80 – 160
Die Height mm 260 315 330 350 400 450
Slide Adjustment mm 40 40 40 50 50 50
Slide Area (LR x FB) mm 600 x 350 700 x 400 900 x 500 1150 x 630 1400 x 700 1700 x 800
Bolster Area (LR X FB) mm 700 x 500 800 x 600 1050 x 800 1300 x 850 1500 x 900 1800 x 900
Bolster Thickness mm 80 100 130 160 175 200
Bed Opening (LR x FB) mm 500 x 200 600 x 225 850 x 250 1100 x 300 1300 x 350 1500 x 380
Side Opening (F-B) x HT in column mm 225 x 200 250 x 200 280 x 250 315 x 275 380 x 300 450 x 300
Main Motor kw 7.5 7.5 11 15 22 37
Air Pressure Atm Kg./Cm2 5.5 5.5 5.5 5.5 5.5 5.5
